  1. Products
  2. Battens
  3. Ormesby UGR Batten 5ft 22/28/34/40W 4000K Plug & Play DALI & E-SEL3 Emergency
Pricelist: - Pricelist
Pricelist: - Pricelist

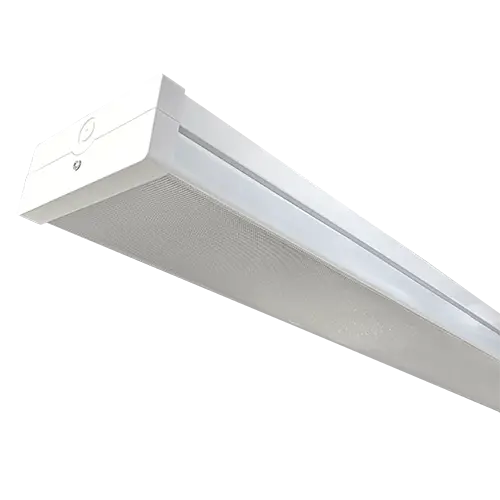

Ormesby UGR Batten 5ft 22/28/34/40W 4000K Plug & Play DALI & E-SEL3 Emergency
1 way to make it yours

Ormesby · Plug & Play

LED batten

Ormesby

Wattage selectable, IP20, up to 120 lm/W.

Up to 120 lm/W IP20 IK04 C rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code421396-DA-E3
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 421396-DA-E3
Short Product Description: Ormesby UGR Batten 5Ft 22/28/34/40W 4000K Plug & Play
Wattage (W): 22 / 28 / 34 / 40
Colour Temperature (K): 4000
Lumens (lm): 2,640 / 3,360 / 4,080 / 4,800
Efficacy (lm/W): 120
Beam Angle: 85
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Adapt it on siteChoose from 4 wattages on each fitting.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP20 protection and IK04 impact resistance, supported by a 5 year warranty.

Specifications for product code 421396-DA-E3. Choose another fitting above to see its own figures.

Wattage22 / 28 / 34 / 40 W
Lumen output2,640 / 3,360 / 4,080 / 4,800 lm
Efficacy120 lm/W
Colour temperature4000 K
Beam angle85°
Input220-240V AC
IP ratingIP20
IK ratingIK04
Dimensions (L x W x H)1500 x 162 x 66 mm
Weight2.9 kg
Energy ratingC
Warranty5 years

Files for product code 421396-DA-E3. Documents shared across the Ormesby range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_ORMESBY_ALL_421395-396_L1.0_0526_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · Ormesby.zipWhole range
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Alwen ON/OFF PIR External Mount White (Batten)
Sensor · 401752Alwen ON/OFF PIR External Mount White (Batten)
Alwen ON/OFF PIR Remote (Batten)
Remote control · 401755Alwen ON/OFF PIR Remote (Batten)
Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Emergency pack · 430962Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
