Sutton · White

LED batten

Sutton

4000K, IP65, up to 160 lm/W.

Up to 160 lm/W IP20 IK06 B rated 5 year warranty
430042-H3
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code430042-H3
Efficacy at selected wattage-
Published output at selected wattage—
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads

Internal Reference: 430042-H3

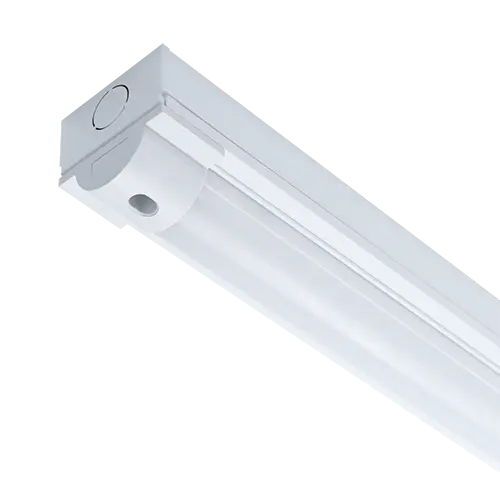

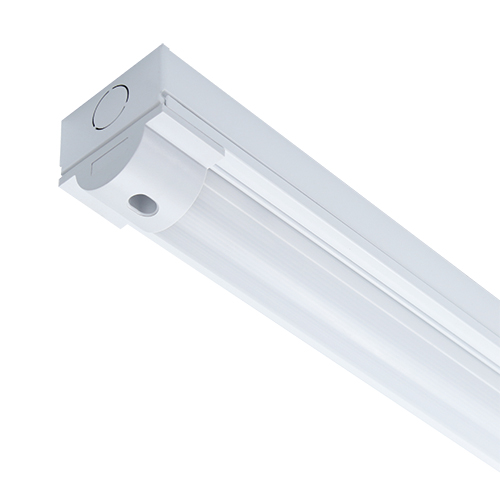

Short Product Description: Sutton 6ft Single Batten - White High Output Emergency
Wattage (W): 38
Colour Temperature (K): 4000
Lumens (lm): 4800
Efficacy (lm/W): 160
Beam Angle: 120
Input Type: 220-240V AC

Built for the job4000K, IP65, up to 160 lm/W.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP20 protection and IK06 impact resistance, supported by a 5 year warranty.

Specifications for product code 430042-H3. Choose another fitting above to see its own figures.

Wattage38 W
Lumen output4800 lm
Efficacy160 lm/W
Colour temperature4000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK06

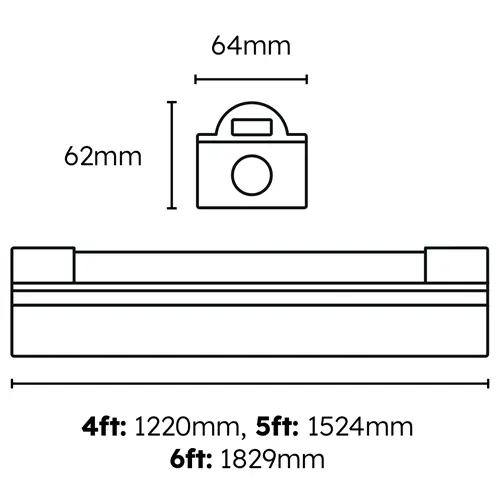

Dimensions (L x W x H)1829 x 64 x 62 mm
Energy ratingB
Warranty5 years
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.
