Sutton Plus · White · Plug & Play

LED batten

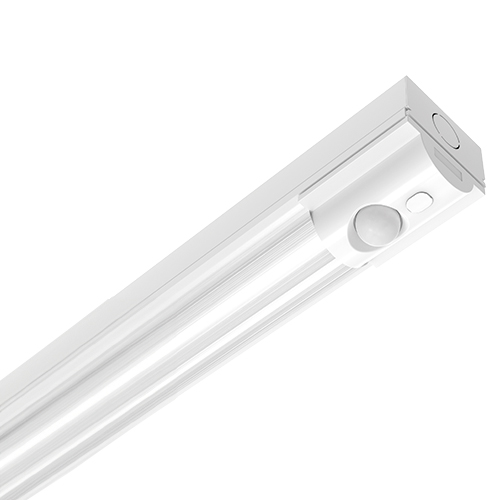

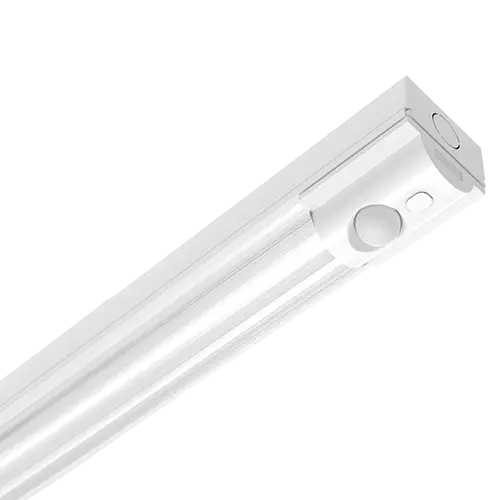

Sutton Plus

Colour selectable, IP20, up to 130 lm/W.

Up to 130 lm/W IP20 IK06 C rated 5 year warranty
430398-H3-PIR
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code430398-H3-PIR
Efficacy at selected wattage-
Published output at selected wattage—
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads

Internal Reference: 430398-H3-PIR
Short Product Description: Sutton Plus 6ft Twin Batten - White High Output Emergency & PIR
Wattage (W): 60
Colour Temperature (K): 4000 / 6000
Lumens (lm): 7800
Efficacy (lm/W): 130
Beam Angle: 120
Input Type: 220-240V AC

Adapt it on siteChoose from 1 wattages, 2 colour temperatures on each fitting.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP20 protection and IK06 impact resistance, supported by a 5 year warranty.

Specifications for product code 430398-H3-PIR. Choose another fitting above to see its own figures.

Wattage60 W
Lumen output7800 lm
Efficacy130 lm/W
Colour temperature4000 / 6000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK06
Dimensions (L x W x H)1829 x 64 x 64 mm
Max. mounting height4 m
Energy ratingC
Warranty5 years
