  1. Products
  2. Downlights
  3. Avon One

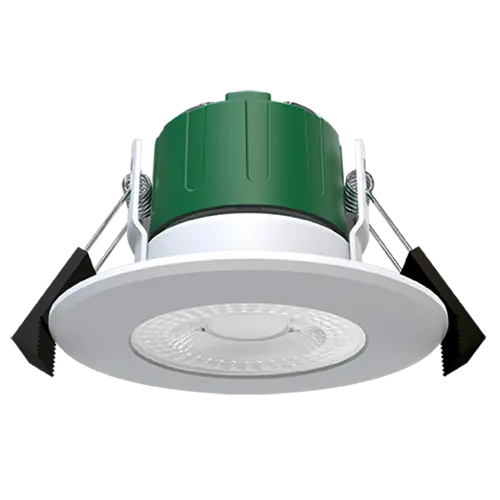

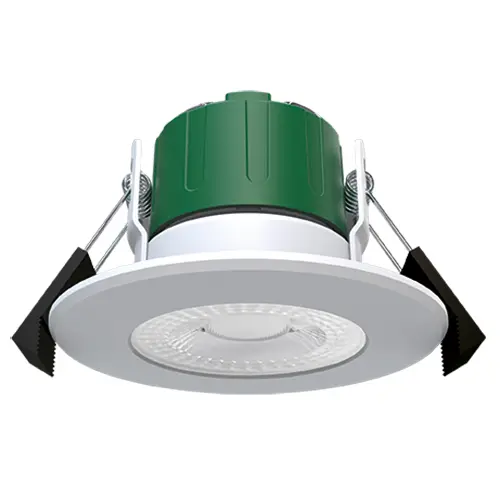

  4. Avon One Fire Rated Downlight 5W 3000K IP65 White 60D
Pricelist: - Pricelist
Pricelist: - Pricelist

Avon One · White

Downlight

Avon One

Single CCT Downlight, IP65, 110lm/W

Up to 110 lm/W IP65/20 IK06 E rated 3 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code430650
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 430650
Short Product Description: Avon One Fire Rated Downlight 5W 3000K IP65 White 60D
Wattage (W): 5
Colour Temperature (K): 3000
Lumens (lm): 550
Efficacy (lm/W): 110
Beam Angle: 60
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Built for the jobSingle CCT Downlight, IP65, 110lm/W
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP65/20 protection and IK06 impact resistance, supported by a 3 year warranty.

Specifications for product code 430650. Choose another fitting above to see its own figures.

Wattage5 W
Lumen output550 lm
Efficacy110 lm/W
Colour temperature3000 K
Beam angle60°
DimmingTriac
Input220-240V AC
IP ratingIP65/20
IK ratingIK06
Dimensions (L x W x H)84 x 84 x 50 mm
Energy ratingE
Warranty3 years

Files for product code 430650. Documents shared across the Avon One range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_AVON_ONE_5W_430650-651_L1.0_0426_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · 5W Avon One Fire Rated Downlight 3000K 430650.zipWhole range
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Avon One Brushed Chrome Bezel
Accessory · 430757Avon One Brushed Chrome Bezel
Avon One Fire Rated Downlight 5W 3000K IP65 White 60D 8 Pack
Accessory · 430650-MPAvon One Fire Rated Downlight 5W 3000K IP65 White 60D 8 Pack
Avon One Fire Rated Downlight 5W 4000K IP65 White 60D 8 Pack
Accessory · 430651-MPAvon One Fire Rated Downlight 5W 4000K IP65 White 60D 8 Pack
Avon One Satin Nickel Bezel
Accessory · 430648Avon One Satin Nickel Bezel
