  1. Products
  2. Bulkheads
  3. Hollingworth

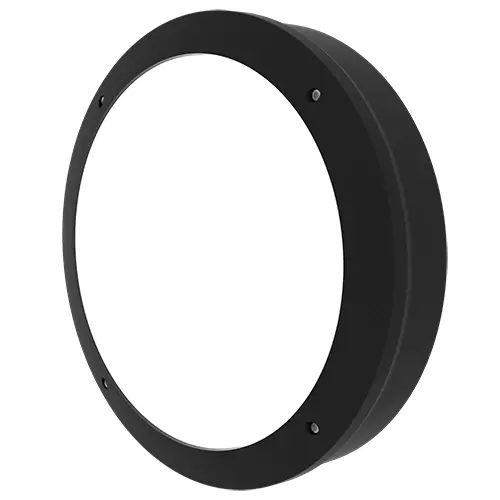

  4. Hollingworth Diecast Bulkhead 12W/16W/18W 3CCT Black Plug & Play IP65 E-SEL3 Emergency Step-Dim
Pricelist: - Pricelist
Pricelist: - Pricelist
2 ways to make it yours

Hollingworth · Black · Plug & Play

One fitting. More flexibility on site. Wattage, colour temperature are selectable on the fitting. Let us help design your project →
All-in-one Bulkhead

Hollingworth

Wattage and colour selectable, IP65, up to 75 lm/W.

Up to 75 lm/W IP65 IK10 F rated 5 year warranty
431129-E3-MW
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code431129-E3-MW
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431129-E3-MW
Short Product Description: Hollingworth Diecast Bulkhead - Black E-SEL3 Emergency & Microwave
Wattage (W): 12 / 16 / 18
Colour Temperature (K): 3000 / 4000 / 6000
Lumens (lm): 900 / 1200 / 1350
Efficacy (lm/W): 75
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Adapt it on siteChoose from 3 wattages, 3 colour temperatures on each fitting.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP65 protection and IK10 impact resistance, supported by a 5 year warranty.

Specifications for product code 431129-E3-MW. Choose another fitting above to see its own figures.

Wattage12 / 16 / 18 W
Lumen output900 / 1200 / 1350 lm
Efficacy75 lm/W
Colour temperature3000 / 4000 / 6000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP65
IK ratingIK10
Dimensions (L x W x H)370 x 370 x 155 mm
Max. mounting height4 m
Energy ratingF
Warranty5 years

Files for product code 431129-E3-MW. Documents shared across the Hollingworth range are marked.

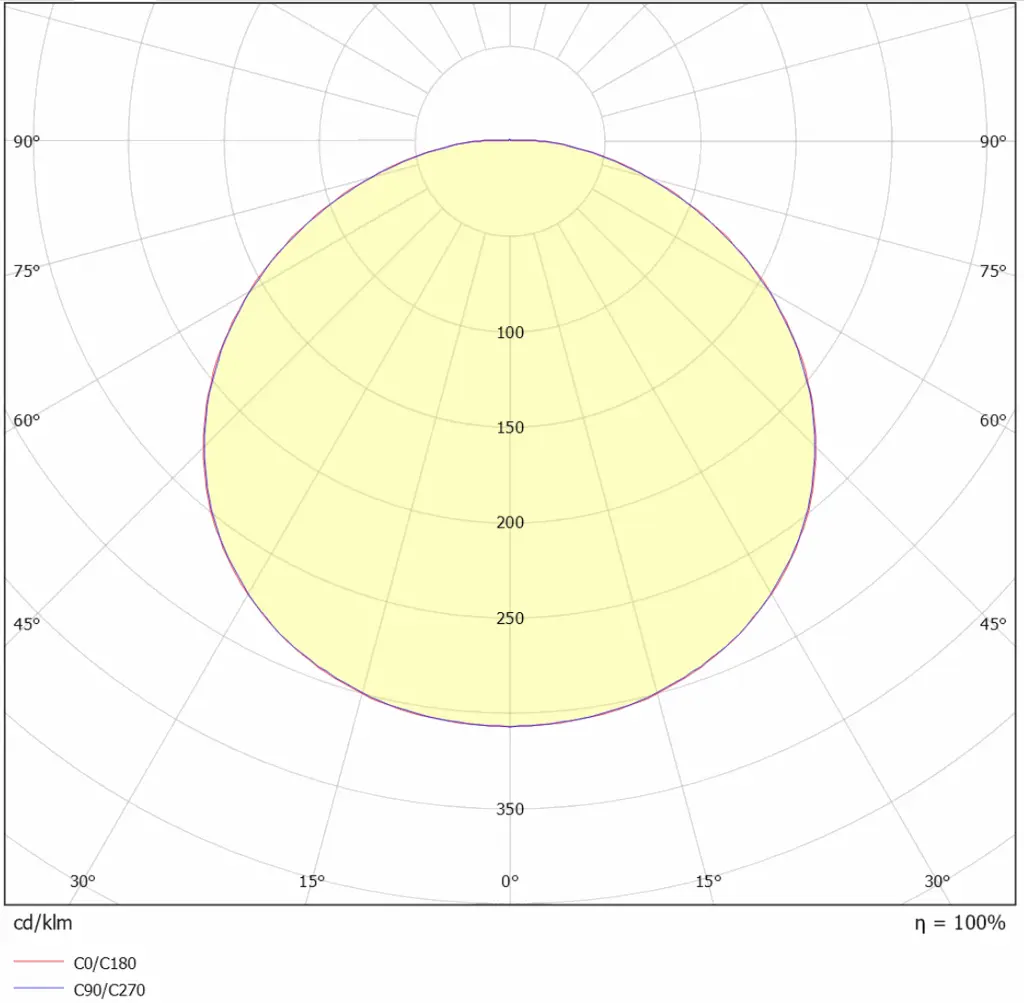

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_HOLLINGWORTH_18W_431129-130_L1.0_0426_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · Hollingworth Bulkhead Eyelid 431130.zipWhole range
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Hollingworth Diecast Eyelid Bulkhead 12W/16W/18W 3CCT IP65 Black Plug & Play
Accessory · 431130Hollingworth Diecast Eyelid Bulkhead 12W/16W/18W 3CCT IP65 Black Plug & Play

What is Plug & Play

Plug & Play takes Lumineux's range to the next level with cross-compatible emergency and sensor modules - fully replaceable, fully interchangeable - meaning your inventory just got a whole lot more streamlined

Learn more
