  1. Products
  2. Anti-Corrosives
  3. Tempest
  4. Tempest Anti-Corrosive 6ft Twin 78W 5000K IP65 Grey Plug & Play High Output E-SEL3 Emergency & Microwave/SD Sensor
Pricelist: - Pricelist
Pricelist: - Pricelist
Sensor

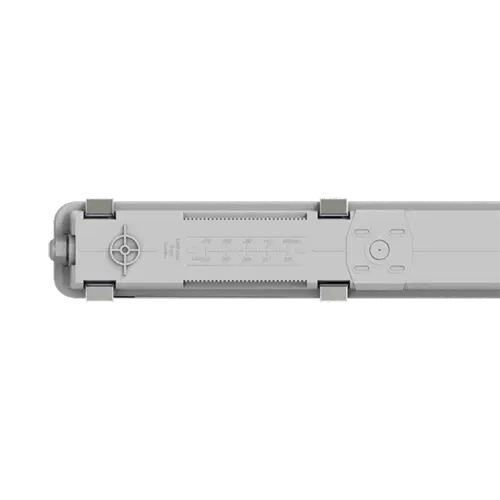

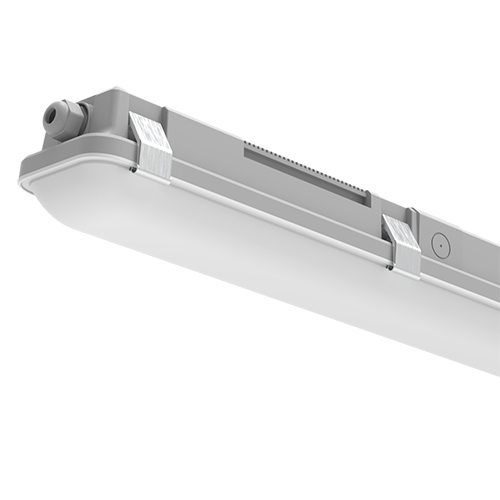

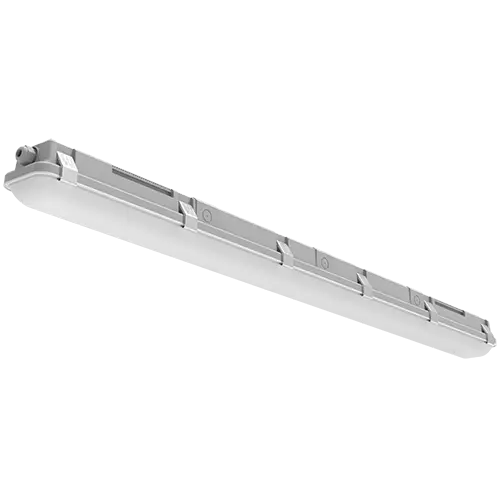

Tempest Anti-Corrosive 6ft Twin 78W 5000K IP65 Grey Plug & Play High Output E-SEL3 Emergency & Microwave/SD Sensor

Tempest 6ft Twin Anti-Corrosive - Grey

Fits Tempest.

IP65 5 year warranty
431344
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code431344-E3-MW
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431344-E3-MW
Short Product Description: Tempest 6ft Twin Anti-Corrosive - Grey
Wattage (W): 78
Colour Temperature (K): 5000
Lumens (lm): 14050
Efficacy (lm/W): 180
Beam Angle: 120
Input Type: 220-240V AC

SpecificationsDownloads

Specifications for product code 431344-E3-MW.

Wattage78 W
Lumen output14050 lm
FitsTempest
Efficacy180 lm/W
Colour temperature5000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP65
Dimensions (L x W x H)1840 x 102 x 85 mm
Max. mounting height6 m
Energy ratingA
Warranty5 years

Files for product code 431344-E3-MW.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_TEMPEST_ALL_431341-344_L1.0_1026_DA.pdfThis code LDTPhotometric filesLDT / IES for lighting designThis code
Compatible ranges

Ranges this fits

This sensor works with the fittings in these ranges.

Tempest
Anti-corrosiveTempest
