  1. Products
  2. Emergency Lighting
  3. Woodhead All-In-One Downlight 2W Black E-SEL3 Emergency
Pricelist: - Pricelist
Pricelist: - Pricelist

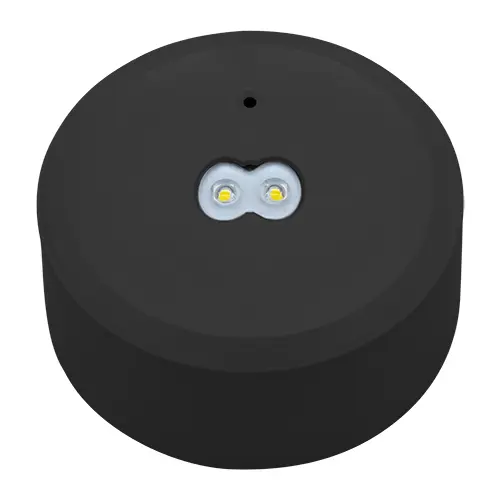

Woodhead All-In-One Downlight 2W Black E-SEL3 Emergency

Woodhead All-In-One · Black

Emergency lighting

Woodhead All-In-One

6000K, IP20, up to 150 lm/W.

Up to 150 lm/W IP20 IK06 D rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code431423-BL
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431423-BL
Short Product Description: Woodhead All in one Emergency Downlight - Black E-SEL3
Wattage (W): 2
Colour Temperature (K): 6000
Lumens (lm): 300
Efficacy (lm/W): 150
Beam Angle: 140
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Built for the job6000K, IP20, up to 150 lm/W.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP20 protection and IK06 impact resistance, supported by a 5 year warranty.

Specifications for product code 431423-BL. Choose another fitting above to see its own figures.

Wattage2 W
Lumen output300 lm
Efficacy150 lm/W
Colour temperature6000 K
Beam angle140°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK06
Dimensions (L x W x H)140 x 140 x 55 mm
Weight0.32 kg
Energy ratingD
Warranty5 years

Files for product code 431423-BL. Documents shared across the Woodhead All-In-One range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_WOODHEAD_2W_431423_L1.0_0426_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · 2W Woodhead Downlight E-SEL3 6000K All-In-One Downlight 431423.zipWhole range
