Tunstall

The Tunstall Downlight offers wattage selectable and 3CCT selectable options for adaptable lighting. Designed with a low-glare lens and a UGR <19 rating, it provides comfortable illumination. Featuring dimmable driver options and compatibility with an E-SEL3 selectable emergency pack, it’s a versatile solution backed by a 5-year product warranty for long-term reliability.

Tunstall

Downlight

5 Year Product Warranty

Core Features

Wattage Selectable

6W/8W, 10W/15W, 20W/30W

3CCT Selectable

3000K, 4000K & 6000K

Ingress Protection

IP44

Beam Angle

70º

Glare Reducing

UGR <19

Product Code Description Wattage Kelvin Lumens LM/W Downloads
430695 Tunstall Downlight - 4" White 6 / 8 3000 / 4000 / 6000 600 / 800 100 View Variant

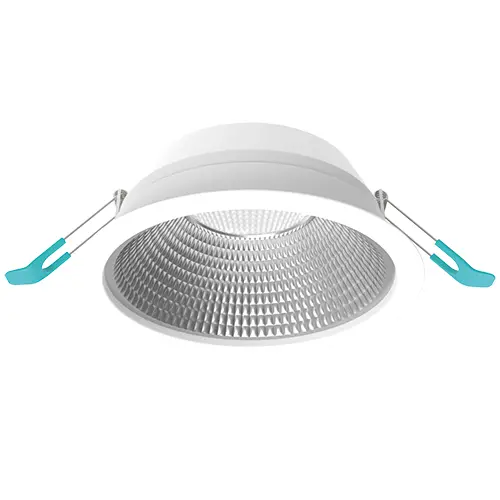

430696 Tunstall Downlight - 6" White 10 / 15 3000 / 4000 / 6000 1,000 / 1,500 100 View Variant

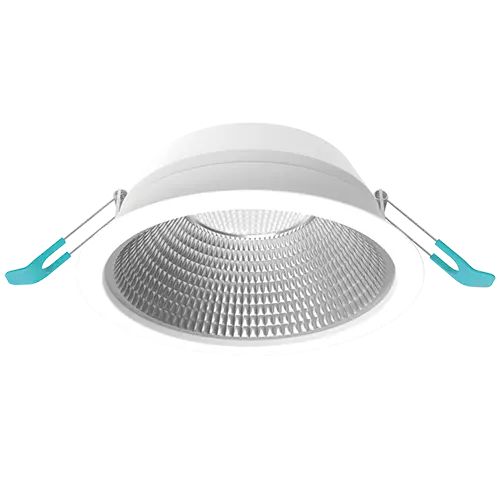

430697 Tunstall Downlight - 8" White 20 / 30 3000 / 4000 / 6000 2,000 / 3,000 100 View Variant
430971 Grafham 2W E-SEL3 Emergency Conversion Pack 20-55V DC 130mA LiFePO4 3.2V DC 3.2 mAh Loch4 Connector 2 - - - View Variant
430265 Triac Dimmable Driver 10W - 24W 10 / 24 - - -
View Variant
430266 Triac Dimmable Driver 18W - 32W 18 / 32 - - -
View Variant
430269 Multi Dimmable Driver (Push Dim, 0-10v & DALI2) 24W - 42W 600-1050mA 30-40DC 24 / 42 - - -
View Variant
430268 Multi Dimmable Driver (Push Dim, 0-10v & DALI2) 8W - 22W 200-550mA 30-40VDC 8 / 22 - - -
View Variant
