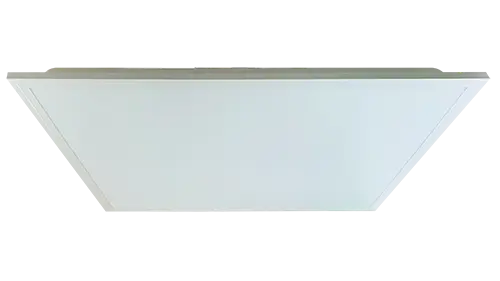

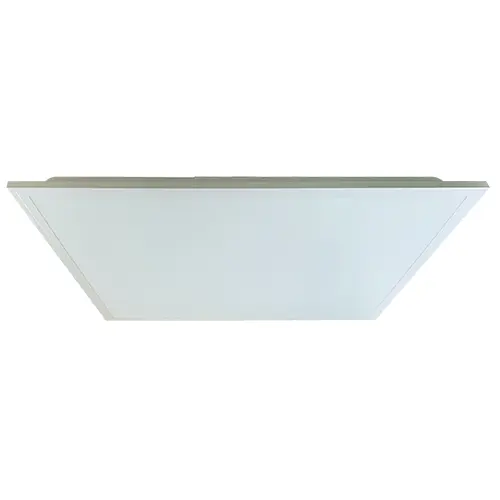

Wraysbury 3CCT 600x600
The Wraysbury UGR 3CCT LED panel combines low-glare performance with flexible colour temperature selection, making it ideal for offices, classrooms and commercial interiors. A micro-prismatic TP(a) diffuser helps reduce glare while maintaining consistent, comfortable illumination for screen-based environments. With selectable colour temperatures and convenient Loch3 quick connector installation, the Wraysbury UGR 3CCT panel offers adaptable lighting performance for modern commercial spaces.
Class:
2
Operating Temperature:
0ºC - 40ºC
(0ºC - 30ºC Emergency)
Ingress Protection:
IP40
Wattages Available:
28W
Beam Angle:
85º
Kelvin: 3CCT Selectable
3000K 4000K 6000K
Features
600 × 600
Standard LED panel formats designed for recessed grid ceiling installations
Microprismatic TP (a) Diffuser
TP(a) rated diffuser providing improved visual comfort and controlled light distribution
E-SEL3 Emergency Option
ESEL-3 universal 2W emergency option available providing selectable self-test or manual emergency operation
Loch3 Quick Connector
Loch3 quick connector enabling faster and easier installation
Pattress kit Available
Enabling surface mounting where recessed installation is not possible
UGR <19
Low glare UGR <19 design ideal for offices, classrooms and screen-based work environments
| Product Code | Description | Wattage | Kelvin | Lumens | LM/W | Downloads |
|---|
