Olton UGR

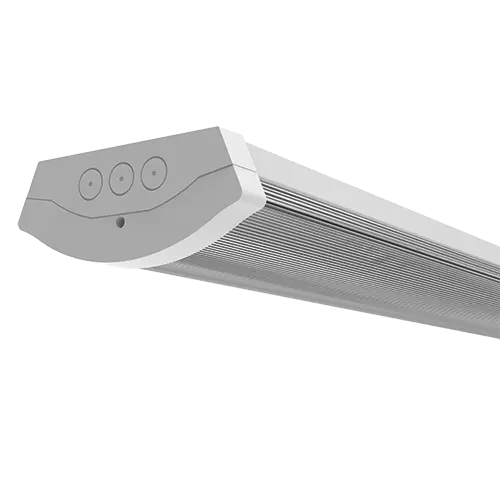

The Olton Academic LED batten is designed to deliver high quality illumination in environments where visual comfort and lighting performance are critical. Featuring a low glare design with UGR <19 and a controlled beam optic, the luminaire provides comfortable lighting for classrooms, offices and other task-focused environments. With high efficacy LED performance and selectable wattage options, Olton Academic allows installers to tailor output while maintaining excellent energy efficiency. Optional PIR sensor modules and high output emergency versions further enhance flexibility for modern commercial lighting installations.

Class:
1
Operating Temperature:
-0ºC - 45ºC
(0ºC - 30ºC Emergency)
Wattages Available:
18W/32W,
24W/43W
Kelvin: 4000K
4000K

Ingress Protection:
IP20

Features
Low Glare Design
Low glare design with UGR <19 delivering excellent visual comfort for classrooms, offices and learning environments
140 lm/W
High efficiency LED performance delivering up to 140 lm/W for energy-efficient illumination
75° Beam Optic
Controlled 75° beam optic improving light distribution and reducing glare in task environments
PIR Option Available
Optional PIR sensor module with remote control enabling convenient motion-based lighting control

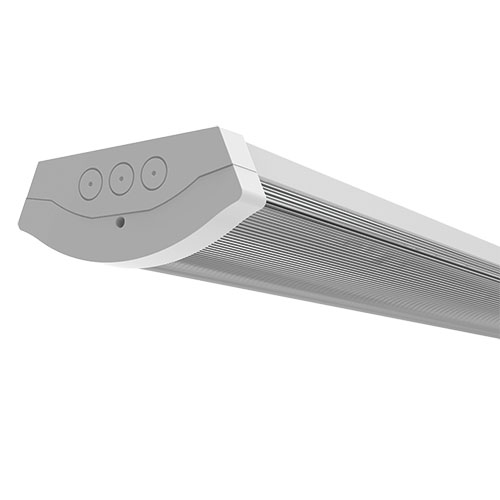

Emergency Option Available
High output emergency version available providing enhanced emergency illumination when required
Selectable Wattage Options
(18W/32W, 24W/43W) allowing installers to tailor light output to suit the application
| Product Code | Description | Wattage | Kelvin | Lumens | LM/W | Downloads |
|---|
