truSmart Snowden

Smart Lighting 5 Years Warranty​

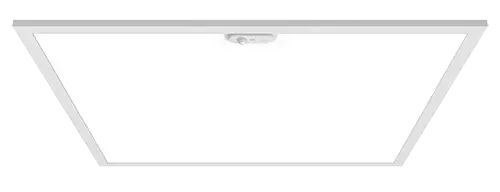

Snowden is a backlit smart LED panel designed for offices, schools and commercial environments requiring intelligent lighting control. Featuring integrated truSmart compatibility and Bluetooth connectivity, it allows lighting to be configured and adjusted directly via the truSmart app. With even light distribution and easy installation features, Snowden provides a simple route to smart lighting for commercial spaces.


Call Sales Contact Technical View Variants

Wattages Available:
24W

Class:
2

Operating Temperature:
0ºC - 40ºC

Ingress Protection:
IP40

Beam Angle:
90º

Kelvin: 4000K

  4000K

Kelvin: Tunable

  3000K-6000K


Features

truSmart Smart Lighting Control

Configure lighting levels and behaviour via the truSmart mobile app.

UGR <19

Microprismatic TP(a) diffuser delivers UGR <19 for improved visual comfort.

Micro-Prismatic TP(a) Diffuser

Provides improved visual comfort and controlled glare.

Flexible Colour Options

Available in 4000K or tunable 3000K–6000K versions.

Energy Efficient Performance

Delivers 150 lm/W efficacy with 3600 lumen output.

Bluetooth Connectivity

Wireless communication simplifies commissioning and system adjustments.


Product Code Description Wattage Kelvin Lumens LM/W Downloads
440029-E3 truSmart Grafham E-SEL3 Emergency Conversion Pack 20-55V DC 130mA 2.5W - - - - View Variant
440028-E3 truSmart Grafham E-SEL3 Emergency Conversion Pack 20-55V DC 130mA 2.5W - - - - View Variant

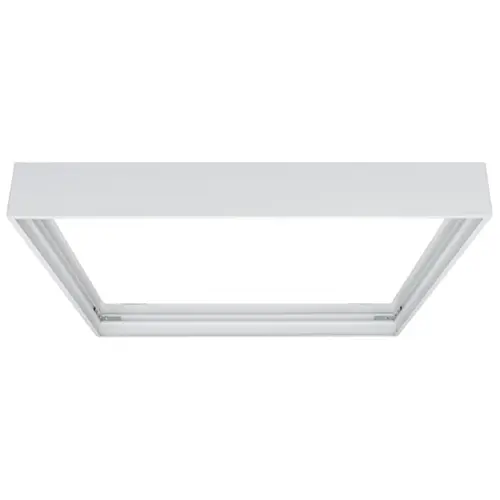

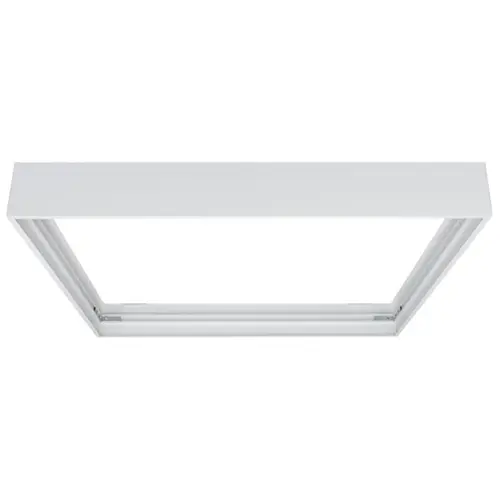

430147 Ceiling Pattress Kit 600 x 600
View Variant

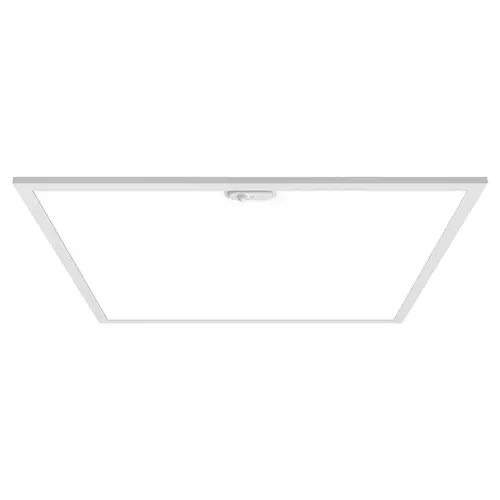

440100 truSmart Snowdon Backlit Panel - 600x600 White PIR 24 4000 3,600 150 View Variant

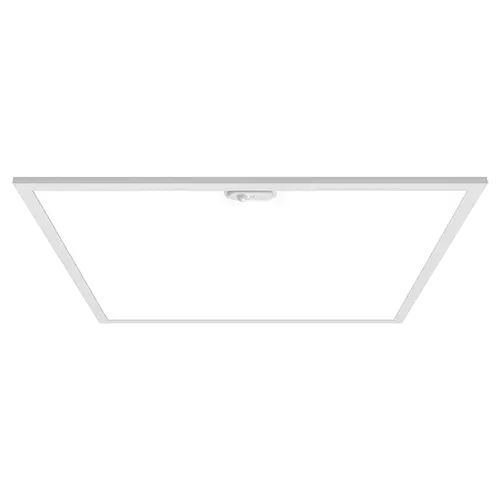

440101 truSmart Snowdon Backlit Panel - 600x600 White PIR 24 3000 - 6000 3,600 150 View Variant
440028 truSmart Grafham Universal Emergency Pack LiFPO4 6.4V 1600mAh 12-50VDC Output for Panel - - - - View Variant
440029 truSmart Grafham Universal Emergency Pack LiFPO4 6.4V 1600mAh 12-50VDC Output forTunable Panel - - - - View Variant
