Rydal

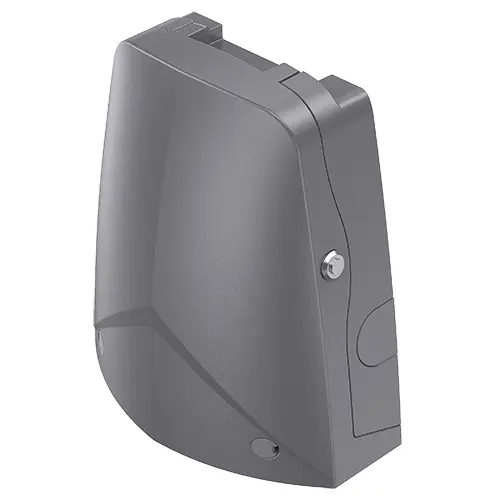

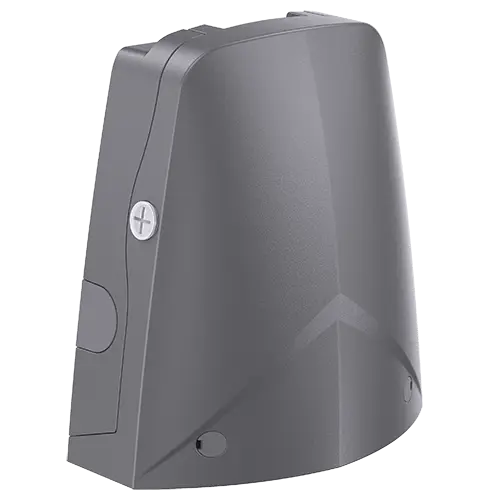

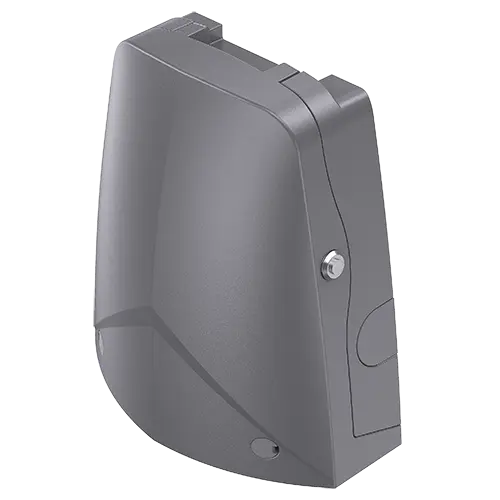

The Rydal LED wall pack delivers powerful, energy-efficient illumination for building perimeters, service yards and commercial exterior spaces. Featuring high-efficiency LED performance and asymmetric optics, Rydal directs light precisely onto the ground while eliminating upward light spill. A hinged front design allows quick access for installation and maintenance, while the integrated dusk-to-dawn photocell provides automatic operation as standard. With robust IK10 rated construction and flexible conduit entry points, Rydal is a dependable solution for demanding exterior lighting applications.
Class:
1
Operating Temperature:
-20ºC - 45ºC
(0ºC - 30ºC Emergency)
Ingress Protection:
IP65
Wattage Available:
15W/22W/30W
Kelvin: 3CCT Selectable
3000K 4000K 5000K
Impact Protection:
IK10
Features
High Efficiency
High efficiency LED performance delivering up to 150 lm/W and 4,500 lumens for powerful exterior illumination
No Upward Light
Asymmetric optic (70° × 140°) directing light precisely where needed while eliminating upward light spill
Integrated Dusk-to-Dawn
Integrated dusk-to-dawn photocell as standard providing automatic exterior lighting control
Easy Access

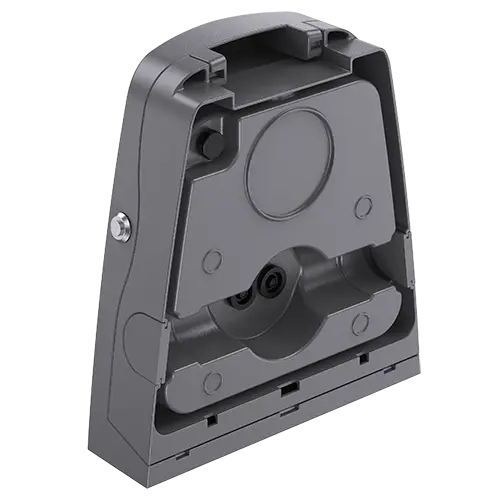

Hinged front design with BESA mounting compatibility allowing quicker installation and easy access for maintenance
IK10 & IP65
IK10 & IP65 rated aluminium construction with side and rear conduit entry points for durable and flexible installation
3CCT Selectable
3CCT selectable technology offering 3000K, 4000K or 5000K for flexible on-site configuration
| Product Code | Description | Wattage | Kelvin | Lumens | LM/W | Downloads |
|---|
