truSmart Blackburn

Smart Lighting 5 Years Warranty​

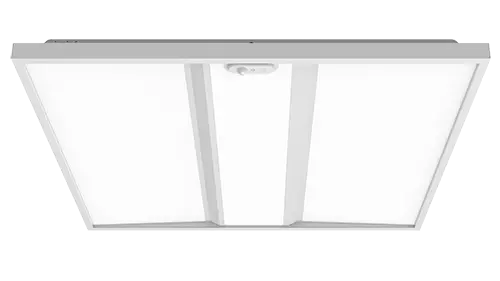

Blackburn is a smart indirect LED panel designed to deliver comfortable, low-glare lighting in offices and commercial environments. Featuring truSmart wireless control and Bluetooth connectivity, it allows lighting levels to be easily configured through the truSmart app. With its indirect lighting design and micro-prismatic diffuser, Blackburn provides even illumination and excellent visual comfort for modern workspaces.


Call Sales Contact Technical View Variants

Wattages Available:
30W

Class:
2

Operating Temperature:
0ºC - 40ºC

Ingress Protection:
IP40

Beam Angle:
90º

Kelvin: 4000K

  4000K

Kelvin: Tunable

  3000K-6000K


Features

truSmart Smart Lighting Control

Lighting levels and behaviour can be configured via the truSmart mobile app.

UGR <19

Microprismatic TP(a) diffuser delivers UGR <19 for improved visual comfort.

Even Light Distribution

Optic lens design ensures consistent illumination across the workspace.

Flexible Colour Temperature Options

Available in 4000K or tunable 3000K–6000K versions.

Emergency Compatible

Supports truSmart E-SEL3 emergency conversion option.

Indirect Lighting Design

Provides soft, evenly distributed illumination ideal for offices and commercial environments.


Product Code Description Wattage Kelvin Lumens LM/W Downloads
440029-E3 truSmart Grafham E-SEL3 Emergency Conversion Pack 20-55V DC 130mA 2.5W - - - - View Variant
440029 truSmart Grafham Universal Emergency Pack LiFPO4 6.4V 1600mAh 12-50VDC Output forTunable Panel - - - - View Variant

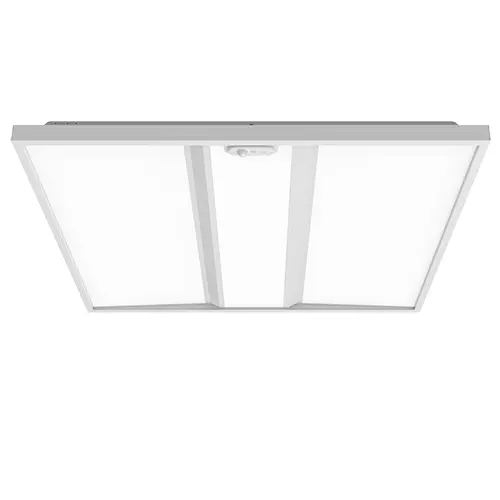

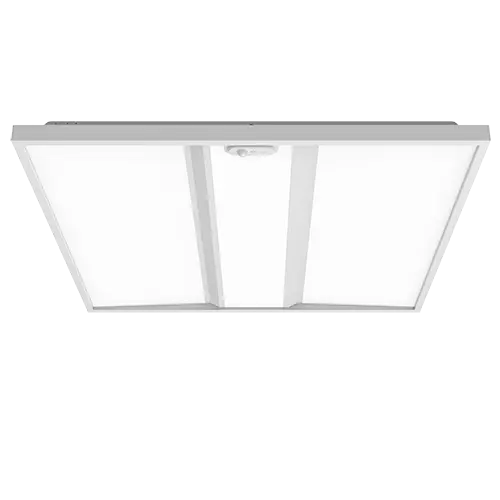

440102 truSmart Blackburn Indirect Panel - 600x600 White PIR 30 3000 - 6000 3,900 130 View Variant
