Ridgegate
The Ridgegate LED Bulkhead is a versatile lighting solution designed for reliable performance in a wide range of indoor and outdoor applications. Featuring wattage selectable output (8W/10W/14W) and 3CCT selectable technology (3000K, 4000K or 6000K), it provides flexible lighting to suit any environment. With a durable IP65 and IK08 rating, BESA mounting, push-fit terminals, and a twist & lock gear tray for faster installation, Ridgegate combines performance, durability and installer-friendly design.
Wattages Available:
8W/10W/14W
Ingress Protection:
IP65
Kelvin: 3CCT Selectable
3000K 4000K 6000K
Operating Temperature:
-20ºC - 40ºC
(0ºC - 30ºC Emergency)
Impact Protection:
IK08
Class:
2
Features
Wattage Selectable Technology
Choose between multiple wattage settings to easily tailor the light output to suit different environments and reduce energy consumption.
Durable Polycarbonate Construction
A tough, long-lasting body paired with a polycarbonate diffuser provides excellent durability and even light distribution.
Wall or Ceiling Installation
Flexible mounting options make Ridgegate suitable for a wide range of interior and exterior applications.
Long-Life LED Performance
Providing up to 40,000 hours (L70) of reliable illumination, helping to reduce maintenance and replacement costs.
Multiple Control Options
Available in standard, emergency and microwave/step dim versions, allowing the luminaire to adapt to different building requirements.
IK08 Impact Resistance
Engineered with a robust design to withstand demanding environments and provide reliable long-term performance.

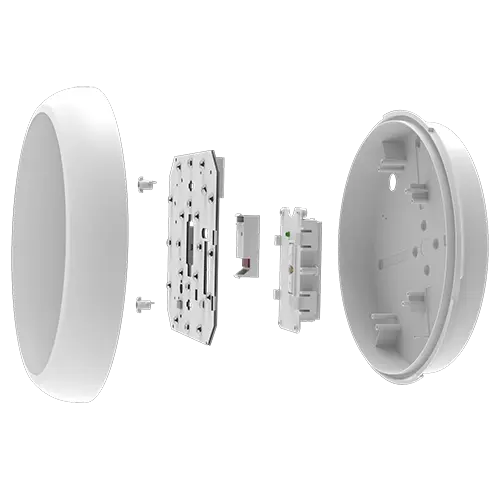

Twist & Lock Gear Tray
Designed for faster installation and easier maintenance, the twist & lock gear tray allows quick access to internal components while keeping the fitting secure.
Variants

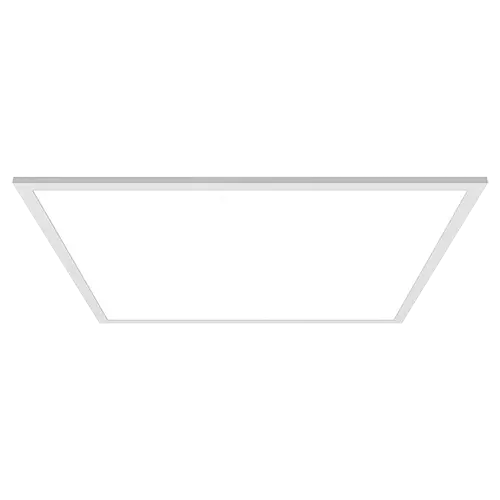

Wraysbury Wattage Selectable
The Wraysbury Backlit LED Panel delivers efficient, uniform illumination for modern interior spaces. With selectable wattage options and high efficacy of up to 120 lm/W, it offers excellent flexibility for a wide range of applications including offices, education, retail and healthcare environments. Featuring 3CCT selectable technology and glare-reducing UGR<19 performance, Wraysbury provides comfortable, adaptable lighting while maintaining a clean architectural appearance.
Wattage Selectable:
8W/23W/28W/34W &
40W/46W/52W/58W
Ingress Protection:
IP44
Kelvin Options: 4000K
4000K
Kelvin Options: 5000K
5000K
Kelvin Options: 3CCT
Operating Temperature:
0ºC - 55ºC
Class:
2
Beam Angle:
95º
Features
Wattage Selectable Output
Choose from multiple wattage settings to tailor light levels to suit different environments while optimising energy efficiency.
UGR <19 Low Glare Design
Designed to minimise glare, helping create comfortable visual conditions ideal for offices, classrooms and workspaces.
IP44 Rated Protection
Provides reliable performance in a wide range of interior environments.
Wide 95° Beam Angle
Ensures smooth, even light distribution across the space.
5 Year Warranty
Backed by a comprehensive warranty for long-term reliability and peace of mind.
3CCT Selectable Technology
Easily switch between 3000K, 4000K or 6000K to achieve the ideal lighting tone for the space.
Our latest content
Check out what's new in our company !

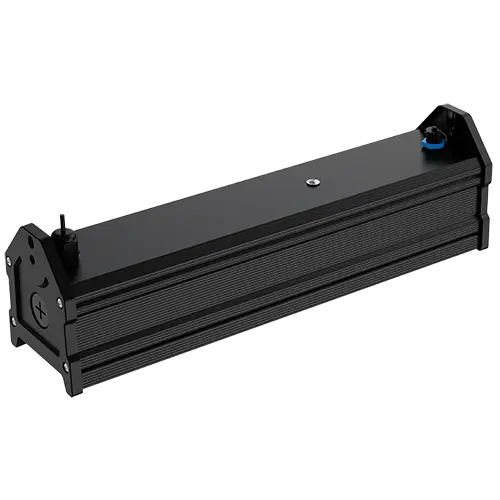

Netherton Plus
The Netherton Plus Range of LED High Bays delivers powerful, high-efficiency lighting for demanding industrial and commercial environments. With outputs ranging from 10,200 to 34,000 lumens and efficacy of up to 170 lm/W, the range provides exceptional illumination for warehouses, logistics centres and large indoor spaces. Designed for durability and long-term reliability, Netherton Plus luminaires feature IP65 and IK08 protection, flexible dimming compatibility and long-life LED performance of up to 120,000 hours (L70).
Wattage Selectable:
60W/80W/100W &
120W/150W/200W
Ingress Protection:
IP65
Kelvin Options: 5000K
5000K
Selectable Beam Angle:
90º or 70º
Class:
1
Operating Temperature:
-30ºC - 50ºC
Features
High Efficiency Performance
Delivering up to 170 lm/W, providing powerful illumination while reducing energy consumption.
Selectable Beam Angles
90° or 70° optics selectable via DIP switch, allowing lighting to be optimised for wide open areas or narrow racked aisles.
Long Life LED Technology
Designed for longevity with up to 120,000 hours L70, helping minimise maintenance and downtime.
Industrial Grade Protection
Robust construction with IP65 ingress protection and IK08 impact resistance, ideal for demanding warehouse environments.
Advanced Control Compatibility
Supports 0–10V, DALI and PWM dimming, with Zhaga socket options for easy integration of sensors and smart lighting controls.
Wide Output Range
Available from 60W to 200W, producing 10,200 to 34,000 lumens to suit different mounting heights and warehouse layouts.
Our latest content
Check out what's new in our company !

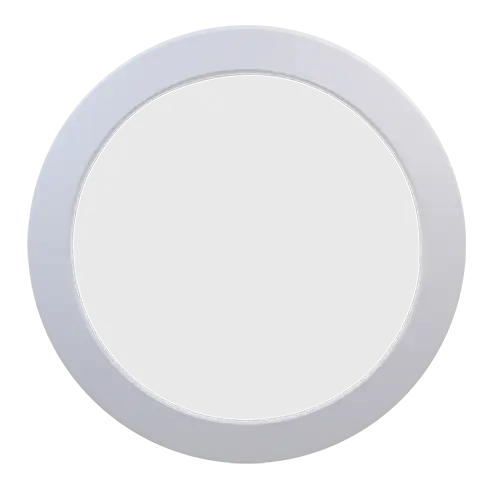

Meldon
The Meldon adjustable downlight range delivers flexible lighting for commercial interiors. With selectable wattage and multiple CCT options, including 3CCT variants, Meldon allows easy on-site configuration. Available with optional PIR sensor and dimmable versions, it supports energy-efficient lighting control. Designed for recessed or surface mounting and finished with black or silver bezels, Meldon is a versatile solution for offices, retail and public spaces.
Wattages Available:
18W
Wattage Selectable:
10W/15W/18W &
15W/22W/28W
Class:
2
Beam Angle:
110º
Operating Temperature:
0ºC - 40ºC
Kelvin Options: 4000K
4000K
Kelvin Options: 3CCT
Ingress Protection:
IP20
Features
Adjustable downlight design
Allowing precise light direction to highlight key areas or features

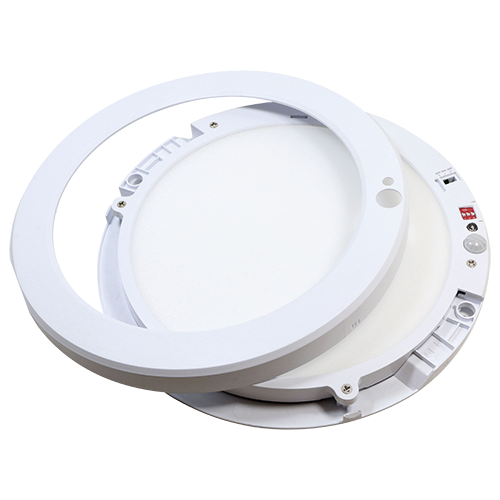

Optional PIR sensor variants
Providing intelligent presence detection to maximise energy savings
Dimmable options available
For greater lighting control and adaptable environments
Recessed or surface mounting capability
Offering installation flexibility for a wide range of ceiling types
Stylish black or silver bezel finishes
Complement modern commercial interiors
Selectable wattage and multiple CCT options
Available across the range, including 3CCT versions for flexible on-site configuration
LIGHTING DESIGN
DONE RIGHT
From warehouse high bays to retail fit-outs, Lumineux's
design team delivers specification-grade layouts, ROI
analysis, and photometric reports — completely free of
charge.
40+
Years Professional Experience
100%
FREE Design Service
700+
Projects Designed Per Year
WHATS INCLUDED
Everything You Need,
At No Cost
Our lighting design service goes beyond a basic layout.
We provide everything a consultant, contractor, or facilities
team needs to specify with confidence.
01
FREE
Lighting Design
Full photometric layout using Relux software with IES/LDT file outputs. Lux level calculations, uniformity ratios, and luminaire schedules tailored to your space and application.
02
FREE
Site Surveys
On-site surveys for standard, specialist, or emergency lighting assessments. Our team visits your facility to measure, photograph, and assess your current installation before recommending solutions.
03
FREE
ROI
Comprehensive payback calculations factoring in energy tariffs, operating hours, maintenance costs, and occupancy patterns. Full carbon savings report included.
04
Specification
SUPPORT
Full product specifications, datasheets & support for consultants. We provide everything needed for a lighting schedule to be included in a tender package.
05
Control
STRATERGY
truSmart, LumiWave, presence detection, and daylight harvesting strategies designed to maximise energy savings and comply with Part L building regulations.
06
Dedicated
ACCOUNT SUPPORT
A named technical contact throughout your project. From initial brief to post-installation queries, you have a single point of contact with deep product knowledge.
OUR PROCESS
From brief to
installation in 5 steps
A straightforward process designed to be as easy as possible for your team, whether you're a consultant, contractor, or end user.
1
Submit Brief
Share your floor plan, application details, and lux targets via our form or email.
2
Site Survey
Our team visits if required, or works from your drawings and photos.
3
Design & Render
Full Relux photometric design with lux plots, false colour maps, and a luminaire schedule.
4
ROI Report
Energy savings, payback period, and carbon reduction figures presented clearly.
5
Sign-off & Supply
Approved design leads seamlessly into supply — with full technical support throughout.
PROJECT GALLERY
Recent Designed
Projects
A selection of lighting design projects delivered by the Lumineux
team across industrial, commercial, and specialist applications.
Our latest content
Check out what's new in our company !
GET STARTED
Request your
FREE lighting design
Tell us about your project and one of our lighting designers will be
in touch within one working day. No obligation, no hard sell — just great lighting.
