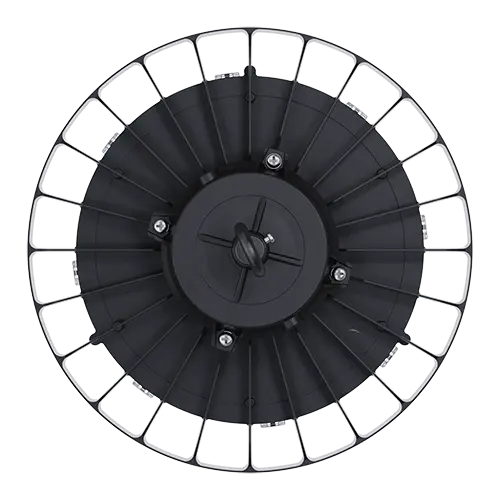

Bosley · Black · Plug & Play

Round high bay

Bosley

A tough industrial fitting with Plug & Play emergency compatibility.

Up to 150 lm/W IP65 IK10 C rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code421501-90
Efficacy at selected wattage-
Published output at selected wattage—
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads

Internal Reference: 421501-90
Short Product Description: Bosley High Bay 150W 5000K IP65 Black 90D Plug & Play
Wattage (W): 150
Colour Temperature (K): 5000
Lumens (lm): 22500
Efficacy (lm/W): 150
Beam Angle: 90
Input Type: 220-240V AC

Built for the jobA tough industrial fitting with Plug & Play emergency compatibility.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP65 protection and IK10 impact resistance, supported by a 5 year warranty.

Specifications for product code 421501-90. Choose another fitting above to see its own figures.

Wattage150 W
Lumen output22500 lm
Efficacy150 lm/W
Colour temperature5000 K
Beam angle90°
Input220-240V AC
IP ratingIP65
IK ratingIK10
Dimensions (L x W x H)250 x 250 x 145 mm
Weight1.7 kg
Energy ratingC
Warranty5 years
