  1. Products
  2. Battens
  3. Olton

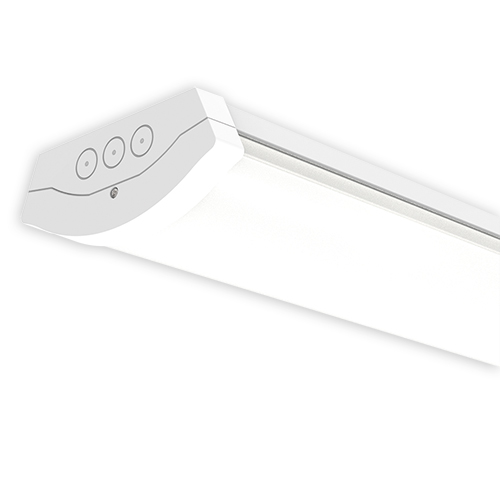

  4. Olton Academic Batten 5ft Dual Wattage 30W&58W 4000k White E-SEL3 Emergency Microwave
Pricelist: - Pricelist
Pricelist: - Pricelist
1 way to make it yours

Olton · White

Older version, available while stocks lastTechnical files stay here. For new projects, see the current version.
See New Olton →
LED batten

Olton

Wattage selectable, IP65, up to 120 lm/W.

Up to 120 lm/W IP20 IK03 C rated 5 year warranty
430818
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code430818-E3-MW
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 430818-E3-MW
Short Product Description: Olton UGR 5ft Batten - White
Wattage (W): 30 / 58
Colour Temperature (K): 4000
Lumens (lm): 3,600 / 6,950
Efficacy (lm/W): 120
Beam Angle: 115
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Adapt it on siteChoose from 2 wattages on each fitting.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP20 protection and IK03 impact resistance, supported by a 5 year warranty.

Specifications for product code 430818-E3-MW. Choose another fitting above to see its own figures.

Wattage30 / 58 W
Lumen output3,600 / 6,950 lm
Efficacy120 lm/W
Colour temperature4000 K
Beam angle115°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK03

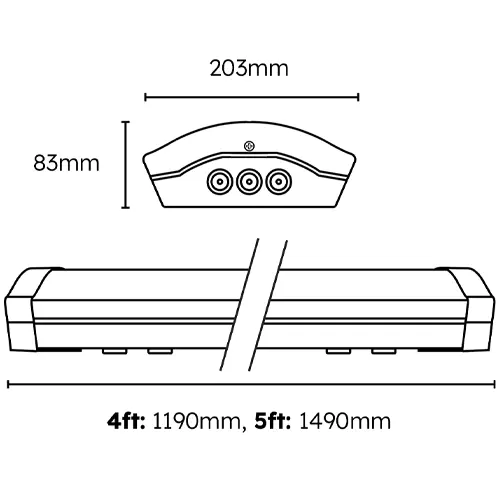

Dimensions (L x W x H)1490 x 203 x 83 mm
Max. mounting height6 m
Energy ratingC
Warranty5 years

Files for product code 430818-E3-MW. Documents shared across the Olton range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsThis code LDTPhotometric filesLDT / IES for lighting designThis code
