Wraysbury 600x600 · White
Internal Reference:
431270
Short Product Description:

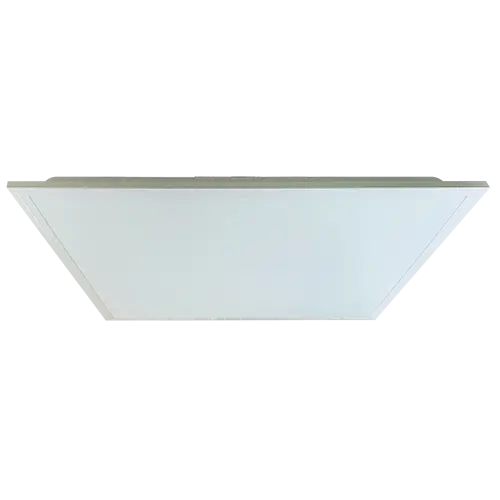

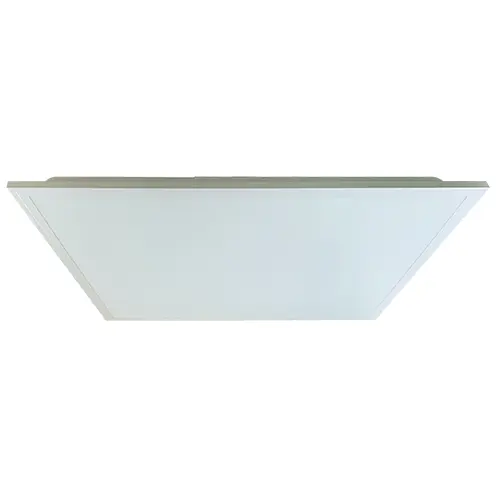

Wraysbury Backlit Panel - 600x600 White
Wattage (W):
30
Colour Temperature (K):
4000
Lumens (lm):
3300
Efficacy (lm/W):
110
Beam Angle:
110
Input Type:
220-240V AC
Specifications for product code 431270. Choose another fitting above to see its own figures.
| Wattage | 30 W |
|---|---|
| Lumen output | 3300 lm |
| Efficacy | 110 lm/W |
| Colour temperature | 4000 K |
| Beam angle | 110° |
| Dimming | Fixed |
| Input | 220-240V AC |
| IP rating | IP40 |
| IK rating | IK03 |

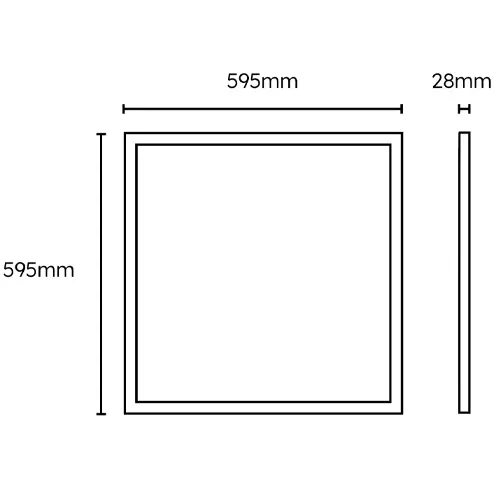

| Dimensions (L x W x H) | 595 x 595 x 28 mm |
| Energy rating | C |
| Warranty | 5 years |
Files for product code 431270. Documents shared across the Wraysbury 600x600 range are marked.
Used on these projects
Case studies where the Wraysbury 600x600 range was installed.

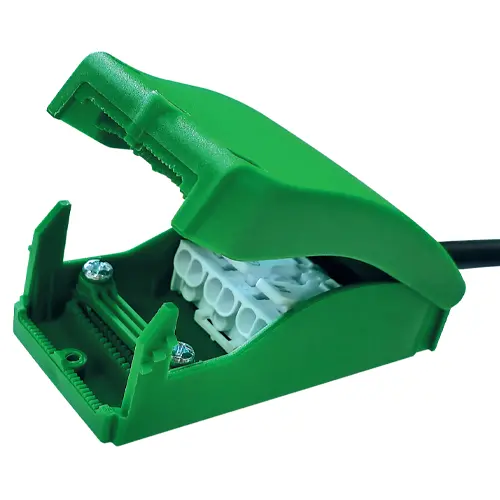

Compatible modules and accessories
Plug & Play sensors, emergency packs and brackets that fit this range.
