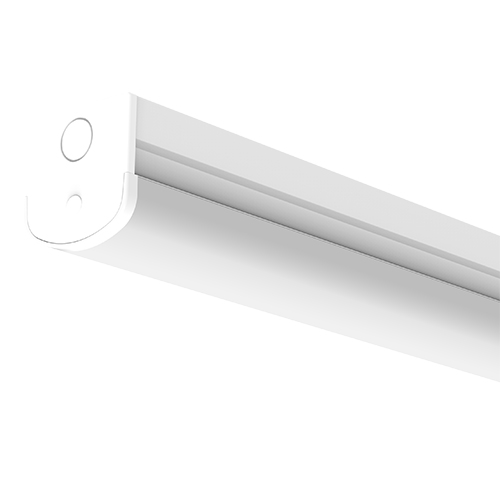

  4. Holywell Plus Batten 6ft Twin 28W/56W 3CCT White Plug & Play E-SEL3 Emergency & Microwave
Pricelist: - Pricelist
Pricelist: - Pricelist
2 ways to make it yours

Holywell Plus · White · Plug & Play

One fitting. More flexibility on site. Wattage, colour temperature are selectable on the fitting. Let us help design your project →
All-in-one LED batten

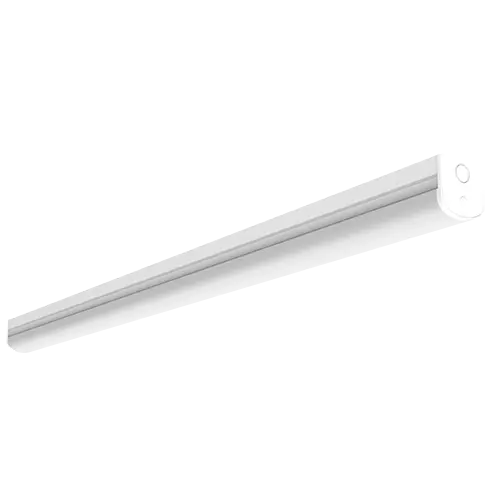

Holywell Plus

Set the wattage. Choose the colour. Add a sensor or emergency pack on site. A twin LED batten in 4ft, 5ft and 6ft for corridors, stores and workshops.

Up to 160 lm/W IP20 IK06 B rated 5 year warranty
431293
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code431293-E3-MW
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431293-E3-MW
Short Product Description: Holywell Plus 6ft Twin Batten - White
Wattage (W): 28 / 56
Colour Temperature (K): 3000 / 4000 / 6000
Lumens (lm): 4,500 / 8,975
Efficacy (lm/W): 160
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads Projects
Adapt it on siteChoose from 2 wattages, 3 colour temperatures on each fitting.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP20 protection and IK06 impact resistance, supported by a 5 year warranty.

Specifications for product code 431293-E3-MW. Choose another fitting above to see its own figures.

Wattage28 / 56 W
Lumen output4,500 / 8,975 lm
Efficacy160 lm/W
Colour temperature3000 / 4000 / 6000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK06
Dimensions (L x W x H)1803 x 64 x 66 mm
Max. mounting height6 m
Energy ratingB
Warranty5 years

Files for product code 431293-E3-MW. Documents shared across the Holywell Plus range are marked.

PDFProduct datasheetTechnical specification, PDFThis code LDTPhotometric filesLDT / IES for lighting designThis code

Used on these projects

Case studies where the Holywell Plus range was installed.

Commercial Unit
Industrial and manufacturingCommercial UnitIntegra Business Park · Redwood ContractorsDerwent, Holywell Plus, Wraysbury 600x600truSmartRead more →
Your projectPlanning a project with Holywell Plus?

Free lighting design, with the layout, light levels and energy figures.

Request a free design
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Sensor · 430916Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Alwen ON/OFF PIR External Mount White (Batten)
Sensor · 401752Alwen ON/OFF PIR External Mount White (Batten)
Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Emergency pack · 430962Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
