Built for the job4000K, IP65, up to 160 lm/W.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP65 protection and IK08 impact resistance, supported by a 5 year warranty.

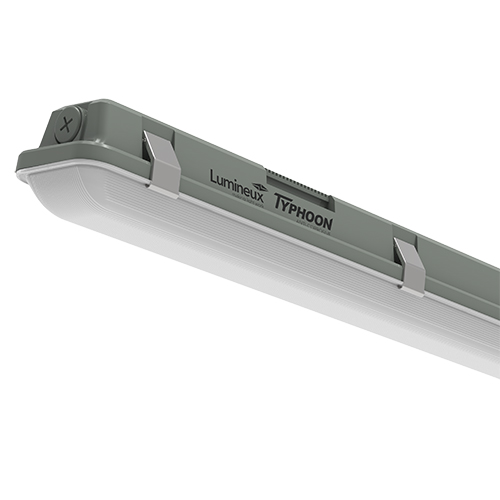

Specifications for product code 431312-DA-E3. Choose another fitting above to see its own figures.
| Wattage | 20 W |
|---|---|
| Lumen output | 3700 lm |
| Efficacy | 160 lm/W |
| Colour temperature | 4000 K |
| Beam angle | 120° |
| Dimming | Fixed |
| Input | 220-240V AC |
| IP rating | IP65 |
| IK rating | IK08 |

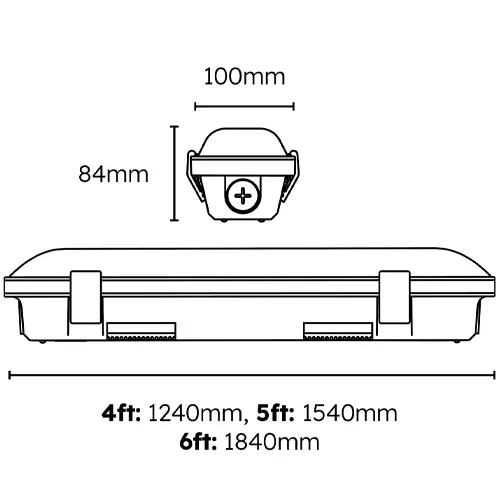

| Dimensions (L x W x H) | 1540 x 100 x 84 mm |
| Energy rating | B |
| Warranty | 5 years |
Files for product code 431312-DA-E3. Documents shared across the Typhoon range are marked.
Recent projects in these sectors
Projects from the sectors this range is recommended for.
Recommended forIndustrial and manufacturing
Industrial and manufacturingTechnicutParr ElectricalMeadley, GrafhamRead more →
Industrial and manufacturingCommercial UnitIntegra Business Park · Redwood ContractorsDerwent, Holywell Plus, Wraysbury 600x600Read more →
Your projectPlanning a project with Typhoon?Free lighting design, with the layout, light levels and energy figures.
Request a free design
Accessories
Compatible modules and accessories
Plug & Play sensors, emergency packs and brackets that fit this range.
