New Meadley · Plug & Play

Round high bay

New Meadley

Fixed-wattage models with sensor and emergency options.

Up to 160 lm/W IP65 IK08 C rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code431332-90
Efficacy at selected wattage-
Published output at selected wattage—
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads

Internal Reference: 431332-90

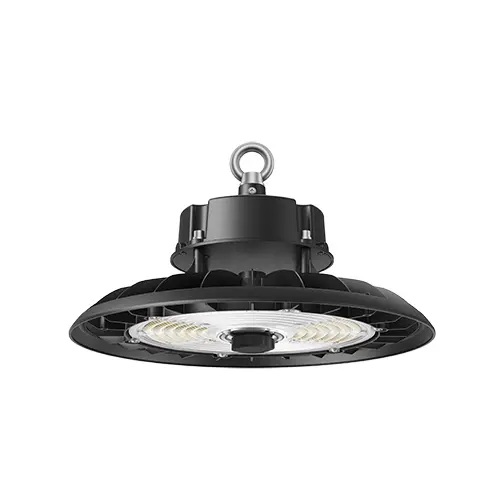

Short Product Description: Meadley High Bay 150W 5000K IP65 90D Plug & Play
Wattage (W): 150
Colour Temperature (K): 5000
Lumens (lm): 24,000
Efficacy (lm/W): 160
Beam Angle: 90
Input Type: 220-240V AC

Built for the jobFixed-wattage models with sensor and emergency options.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP65 protection and IK08 impact resistance, supported by a 5 year warranty.

Specifications for product code 431332-90. Choose another fitting above to see its own figures.

Wattage150 W
Lumen output24,000 lm
Efficacy160 lm/W
Colour temperature5000 K
Beam angle90°
DimmingtruSmart
Input220-240V AC
IP ratingIP65
IK ratingIK08
Dimensions (L x W x H)280 x 280 x 130 mm
Weight1.75 kg
Energy ratingC
Warranty5 years

Recent projects in these sectors

Projects from the sectors this range is recommended for.

Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.
