  1. Products
  2. Anti-Corrosives
  3. Tempest

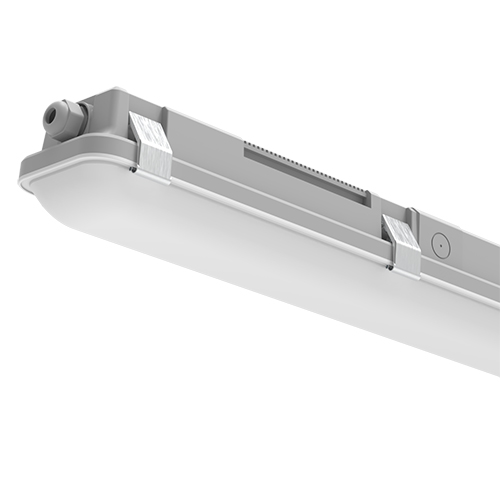

  4. Tempest Anti-Corrosive 5ft Twin 26W/46W 2CCT IP65 Grey Plug & Play DALI & E-SEL3 Emergency
Pricelist: - Pricelist
Pricelist: - Pricelist
2 ways to make it yours

Tempest · Grey

One fitting. More flexibility on site. Wattage, colour temperature are selectable on the fitting. Let us help design your project →
All-in-one Anti-corrosive A72

Tempest

Wattage and colour selectable, IP65, up to 185 lm/W.

Up to 185 lm/W IP65 IK08 5 year warranty
431341-DA-DA3
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code431341-DA-E3
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431341-DA-E3
Short Product Description: Tempest 5ft Twin Anti Corrosive - Grey DALI & DALI Emergency
Wattage (W): 26 / 46
Colour Temperature (K): 4000 / 5000
Lumens (lm): 4,800 / 8,275
Efficacy (lm/W): 185
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads Projects
Adapt it on siteChoose from 2 wattages, 2 colour temperatures on each fitting.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP65 protection and IK08 impact resistance, supported by a 5 year warranty.

Specifications for product code 431341-DA-E3. Choose another fitting above to see its own figures.

Wattage26 / 46 W
Lumen output4,800 / 8,275 lm
Efficacy185 lm/W
Colour temperature4000 / 5000 K
Beam angle120°
DimmingDALI
Input220-240V AC
IP ratingIP65
IK ratingIK08

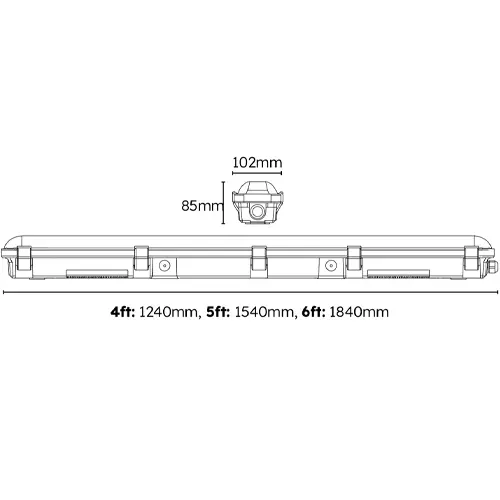

Dimensions (L x W x H)1540 x 102 x 85 mm
Energy ratingA
Warranty5 years

Files for product code 431341-DA-E3. Documents shared across the Tempest range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_TEMPEST_ALL_431341-344_L1.0_1026_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · 26W Tempest ACF 5000K 5ft Single (E3_400lm) 431341.zipWhole range

Recent projects in these sectors

Projects from the sectors this range is recommended for.

Recommended forIndustrial and manufacturing
Technicut
Industrial and manufacturingTechnicutParr ElectricalMeadley, Grafham1,000 lx Minimum level designed across the workspaceRead more →
Commercial Unit
Industrial and manufacturingCommercial UnitIntegra Business Park · Redwood ContractorsDerwent, Holywell Plus, Wraysbury 600x600truSmartRead more →
Your projectPlanning a project with Tempest?

Free lighting design, with the layout, light levels and energy figures.

Request a free design
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Alwen Linear Microwave/SD Sensor 12V DC Plug & Play
Sensor · 431346Alwen Linear Microwave/SD Sensor 12V DC Plug & Play
Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Emergency pack · 430962Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Step-Dim Remote Control for 431346
Remote control · 430904Step-Dim Remote Control for 431346
