  1. Products
  2. Anti-Corrosives
  3. Tamar

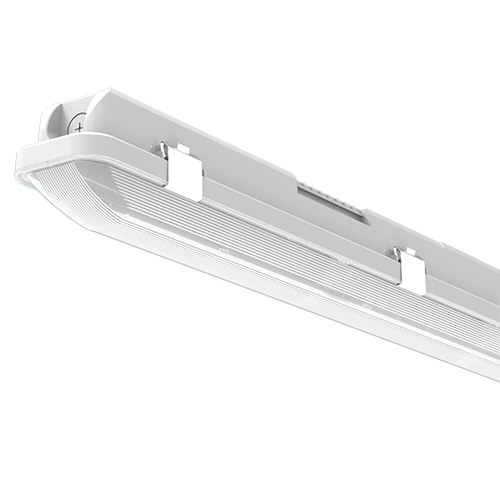

  4. Tamar Anti-Corrosive 5ft Twin 25W/50W 4000K IP65 Grey Plug & Play DALI
Pricelist: - Pricelist
Pricelist: - Pricelist
1 way to make it yours

Tamar · Grey · Plug & Play

Anti-corrosive

Tamar

Wattage selectable, IP65, up to 160 lm/W.

Up to 160 lm/W IP65 IK08 B rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code431352-DA
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 431352-DA
Short Product Description: Tamar 5ft Twin Anti Corrosive - Grey
Wattage (W): 25 / 50
Colour Temperature (K): 4000
Lumens (lm): 4,000 / 8,000
Efficacy (lm/W): 160
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads Projects
Adapt it on siteChoose from 2 wattages on each fitting.
Add the control you needPlug & Play sensor and emergency options click in on site. Compatible modules are listed with the accessories below.
Built to lastIP65 protection and IK08 impact resistance, supported by a 5 year warranty.

Specifications for product code 431352-DA. Choose another fitting above to see its own figures.

Wattage25 / 50 W
Lumen output4,000 / 8,000 lm
Efficacy160 lm/W
Colour temperature4000 K
Beam angle120°
DimmingDALI
Input220-240V AC
IP ratingIP65
IK ratingIK08

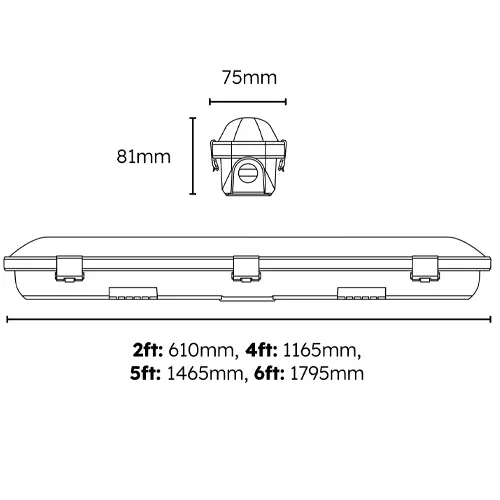

Dimensions (L x W x H)1465 x 75 x 81 mm
Energy ratingB
Warranty5 years

Files for product code 431352-DA. Documents shared across the Tamar range are marked.

PDFProduct datasheetTechnical specification, PDFThis code LDTPhotometric filesLDT / IES for lighting designThis code

Recent projects in these sectors

Projects from the sectors this range is recommended for.

Recommended forIndustrial and manufacturing
Technicut
Industrial and manufacturingTechnicutParr ElectricalMeadley, Grafham1,000 lx Minimum level designed across the workspaceRead more →
Commercial Unit
Industrial and manufacturingCommercial UnitIntegra Business Park · Redwood ContractorsDerwent, Holywell Plus, Wraysbury 600x600truSmartRead more →
Your projectPlanning a project with Tamar?

Free lighting design, with the layout, light levels and energy figures.

Request a free design
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Sensor · 430916Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Emergency pack · 430962Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Tamar Anti-Corrosive 2ft Twin 10W/20W 4000K IP65 Grey Plug & Play
Accessory · 431350Tamar Anti-Corrosive 2ft Twin 10W/20W 4000K IP65 Grey Plug & Play
Tamar Anti-Corrosive 4ft Twin 20W/40W 4000K IP65 Grey Plug & Play
Accessory · 431351Tamar Anti-Corrosive 4ft Twin 20W/40W 4000K IP65 Grey Plug & Play
Tamar Anti-Corrosive 6ft Twin 30W/60W 4000K IP65 Grey Plug & Play
Accessory · 431353Tamar Anti-Corrosive 6ft Twin 30W/60W 4000K IP65 Grey Plug & Play
