Apex

 Bulkhead 5 Years Warranty​ Available from May 2026​

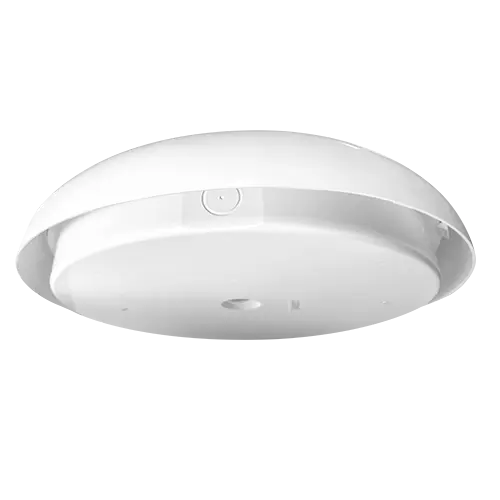

The Apex LED bulkhead provides a reliable and versatile lighting solution for a wide range of indoor and outdoor amenity applications. Featuring selectable wattage and 3CCT technology, Apex allows installers to easily configure both light output and colour temperature on site. Designed with installation efficiency in mind, the luminaire incorporates a fold-down gear tray and plug & play connectivity for faster wiring and maintenance. With a robust IP65 and IK08 rated construction, Apex delivers dependable performance in demanding environments such as corridors, stairwells and external walkways.


Call Sales Contact Technical View Variants

Ingress Protection:
IP65

Wattages Available:
10W/14W/17W

Operating Temperature:
-20ºC - 40ºC
(0ºC - 30ºC Emergency)

Kelvin: 3CCT Selectable

 3000K  4000K  6000K

Impact Protection:
IK08

Class:
2


Features

Selectable Wattage Options

(10W/14W/17W) allowing installers to easily adjust light output to suit the application

Plug & Play Connectivity

Enabling quicker wiring and simplified installation

Fold-down Gear Tray

Designed to provide easy access for wiring, installation and maintenance

Side Conduit Entry

20mm side conduit entry providing convenient cable access for faster installation

IP65 Rated

Durable IP65 rated construction protecting the luminaire against dust and water ingress

3CCT Selectable Technology

Offering a choice of 3000K, 4000K or 6000K for flexible on-site configuration

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Product Code Description Wattage Kelvin Lumens LM/W Downloads
431470-E3 Apex Bulkhead - White E-SEL3 Emergency 10 / 14 / 17 3000 / 4000 / 6000 1,000 / 1,400 / 1,700 100 View Variant

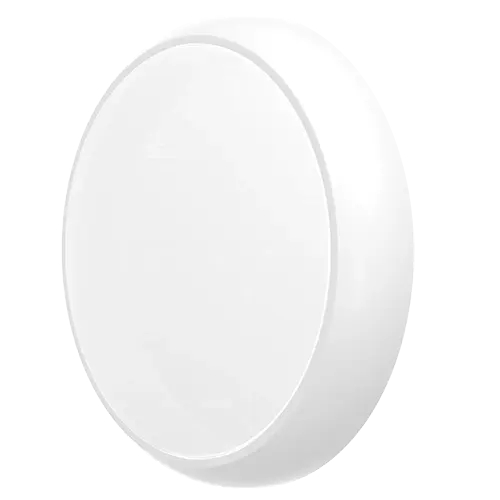

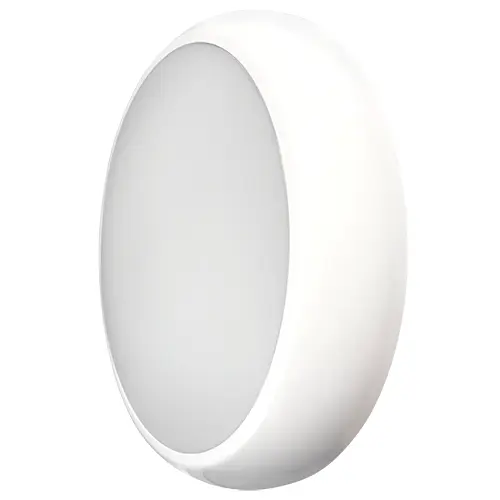

431470 Apex Bulkhead - White 10 / 14 / 17 3000 / 4000 / 6000 1,000 / 1,400 / 1,700 100 View Variant
431470-MW Apex Bulkhead - White Microwave 10 / 14 / 17 3000 / 4000 / 6000 1,000 / 1,400 / 1,700 100 View Variant

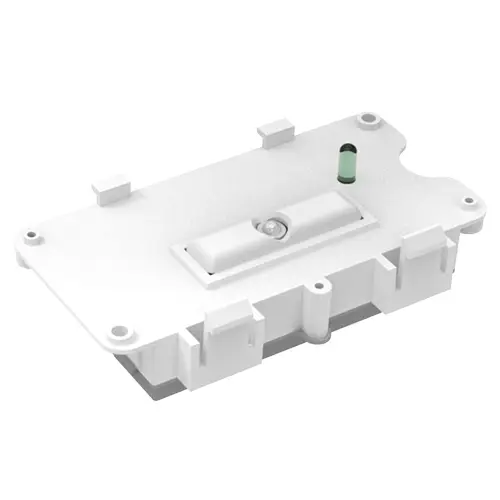

430963 Grafham Bulkhead Emergency Conversion Pack 2W Plug & Play 2 6500 View Variant

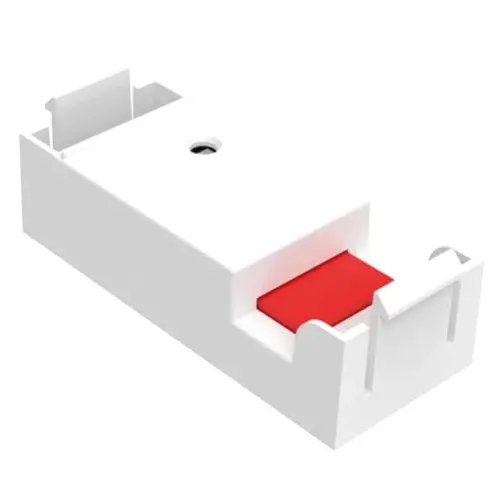

431127 Alwen Plug & Play MW Sensor (For Bulkheads) View Variant
431470-E3-MW Apex Bulkhead - White E-SEL3 Emergency & Microwave 10 / 14 / 17 3000 / 4000 / 6000 1,000 / 1,400 / 1,700 100 View Variant
