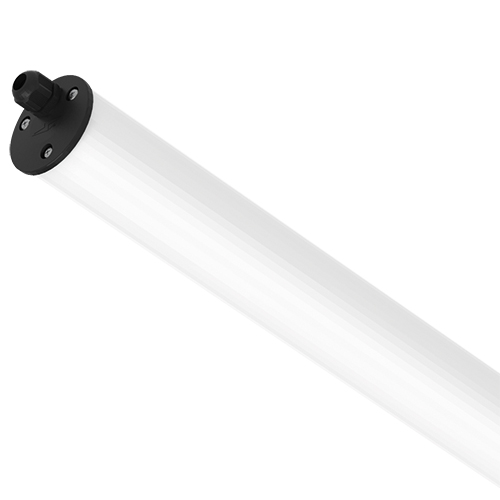

  4. Welford Tubulaire 5ft 65W 5000K IP67 Frosted 70mm E-Sel3 Emergency Microwave
Pricelist: - Pricelist
Pricelist: - Pricelist

Welford

Anti-corrosive

Welford

5000K, IP67, up to 120 lm/W.

Up to 120 lm/W IP67 IK10 E rated 5 year warranty
420542-H3
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
Product code420542-E3-MW
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 420542-E3-MW
Short Product Description: Welford 5ft Tubulaire 70mm - White High Output Emergency
Wattage (W): 65
Colour Temperature (K): 5000
Lumens (lm): 7800
Efficacy (lm/W): 120
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads Projects
Built for the job5000K, IP67, up to 120 lm/W.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP67 protection and IK10 impact resistance, supported by a 5 year warranty.

Specifications for product code 420542-E3-MW. Choose another fitting above to see its own figures.

Wattage65 W
Lumen output7800 lm
Efficacy120 lm/W
Colour temperature5000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP67
IK ratingIK10

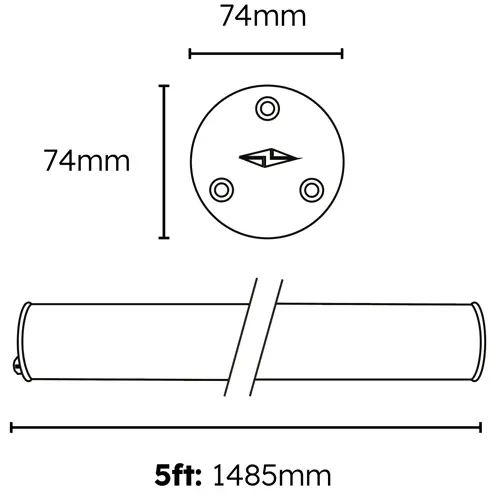

Dimensions (L x W x H)1485 x 74 x 74 mm
Energy ratingE
Warranty5 years

Files for product code 420542-E3-MW. Documents shared across the Welford range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_WELFORD_65W_420542_L1.0_0526_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting designThis code
