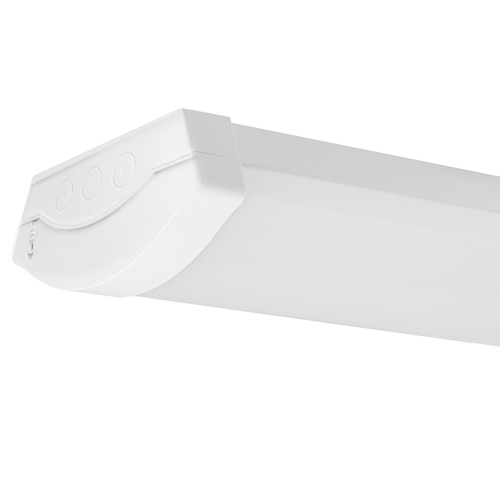

  4. Olton Opal UGR Academic Batten 4ft 16W/30W 4000K Plug & Play E-SEL3 Emergency
Pricelist: - Pricelist
Pricelist: - Pricelist
1 way to make it yours

New Olton

LED batten

New Olton

Wattage selectable, IP20, up to 150 lm/W.

Up to 150 lm/W IP20 IK04 C rated 5 year warranty
£ 0.00 £ 0.00
£ 0.00

1. Choose your fitting
3. Set it up on site

These settings are made on the fitting after installation; they do not change the product code.

Product code421430-E3
Efficacy at selected wattage-
Published output at selected wattage—
Add to cart
Add to my project

Saved in this browser, no account needed. From My project you can download a luminaire schedule and all the technical files, and send it to us for a quote or a free lighting design.

Request a quote → Download files ↓

For prices and availability, request a quote or call our sales team on 01507 328031. Wholesalers can order on Lumineux Online with Trade login.

Downloads
Contact Us

Internal Reference: 421430-E3
Short Product Description: Olton Academic Batten 4ft 16W/30W 4000K Plug & Play UGR
Wattage (W): 16 / 30
Colour Temperature (K): 4000
Lumens (lm): 2,400 / 4,500
Efficacy (lm/W): 150
Beam Angle: 120
Input Type: 220-240V AC

OverviewSpecificationsDownloads
Adapt it on siteChoose from 2 wattages on each fitting.
Add the control you needCompatible modules are listed with the accessories below.
Built to lastIP20 protection and IK04 impact resistance, supported by a 5 year warranty.

Specifications for product code 421430-E3. Choose another fitting above to see its own figures.

Wattage16 / 30 W
Lumen output2,400 / 4,500 lm
Efficacy150 lm/W
Colour temperature4000 K
Beam angle120°
DimmingFixed
Input220-240V AC
IP ratingIP20
IK ratingIK04
Dimensions (L x W x H)1222 x 199 x 82 mm
Weight2.1 kg
Energy ratingC
Warranty5 years

Files for product code 421430-E3. Documents shared across the New Olton range are marked.

PDFProduct datasheetTechnical specification, PDFThis code PDFInstallation instructionsUSER_OLTON_ACADEMIC_ALL_421430-431_L1.0_0526_DA.pdfWhole range LDTPhotometric filesLDT / IES for lighting design · 421430.zipWhole range
Accessories

Compatible modules and accessories

Plug & Play sensors, emergency packs and brackets that fit this range.

Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Sensor · 430916Alwen Linear Microwave Sensor 220-240V AC 200W Max Plug & Play
Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
Emergency pack · 430962Grafham 3.5W Conversion Pack 50-300V DC 0-40mA LifePO4 3.2V DC 3.2Ah Plug & Play E-SEL3 Emergency
